PANTHERA U3 Light, Extremely Light Wheekchair
PANTHERA U3 EXREMELY KIGHT

CE Gold TUV

Contact Us

Description

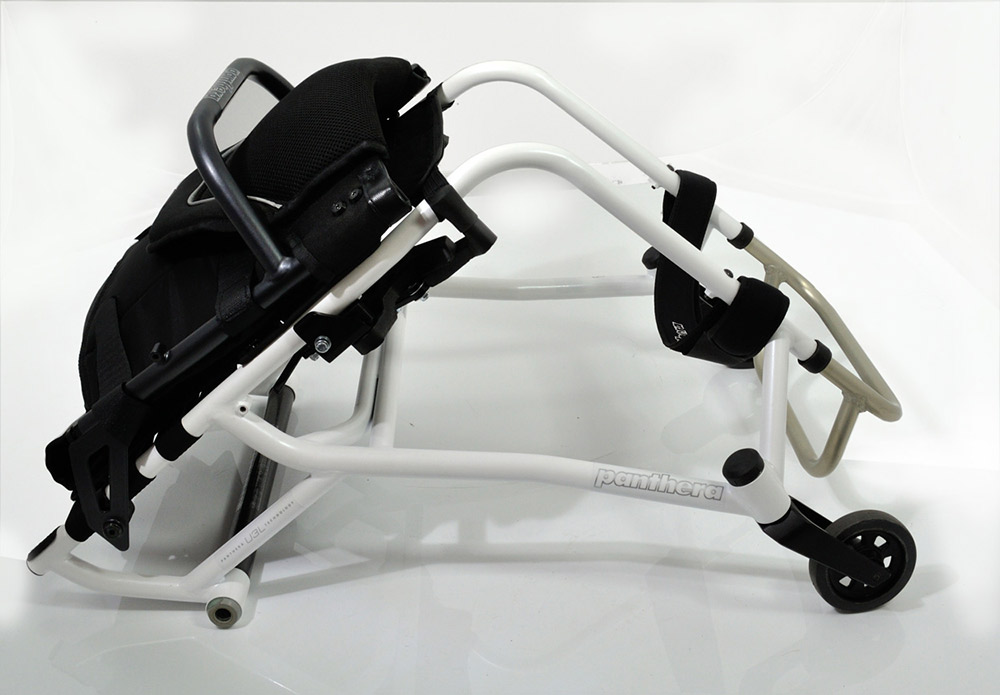

Panthera U3 Light

Extremely Light Wheelchair

- U3 Light is a wheelchair designed for the experienced active users, who can handle a "tippy" wheelchair without anti-tip device.

- Designed to reduce and prevent the problems with neck and shoulder pain and to make lifting and driving the chair as easy as possibly without, of course, reducing its ergonomic features.

- The design is optimized for easy handling and lifting in and out of cars.

- Extremely good driving characteristics

- A very clean and minimalistic design.

- Gives the active-user big improvements in his or her daily life.

- U3 Light has a carbon fiber rear axle, SPINERGY X rear wheels, ALUMINUM FOOTREST and X castor wheels.

- A SEAT BAG with integrated magnets, is included

- U3 Light exists in two different set-ups. "U3 light" and "U3 light L"

- "U3 light" with a normal balance

- "U3 light L" with a more "tippy" balance.

- "U3 light L" has the rear axle moved forward an additional 22 mm.

- To calibrate the balance - adjust the position of the backrest

- Standard color is "Pearl White" or "Anodic Black".



Standard Design

  • Chassis: Chrome molybdenum tubing-white
  • Rear Axle: U3 light
  • Balancing: Standard or Light (L) and 3 backrest positions
  • Rear Wheels: 24" X wheels
  • Push Rim: Aluminum
  • Brakes: One Hand Brake
  • Castors: 75 mm X castors
  • Footrest: Aluminum X
  • Backrest: Upgraded adjustable angle
  • Backrest Upholstery: Adjustable
  • Others: Calf band, Tool kit, Manual



Optional Accessories to build up your U3 Light wheelchair

  • Variety of Side Guards or Armrests.
  • Variety of Seat Cushions.
  • Variety of Push Handles.
  • Anti-Tip Device.
  • Transport Frame Protection.
  • Tetra Quick Release.
  • Arm Hook.
  • One Hand Brake (Left or Right).
  • Assistant Brakes.
  • Back Rest Wedge.
  • Amputation Leg Support.
  • Table.
  • Gel Pad for the Arm Support.
  • Torso Strap.
  • Crutch Holder.
  • Seat Bag.
  • Backpack.
  • Spoke Protectors.
  • Tool Kit.
  • Freewheel.

Technical Spec.

PANTHERA U3 Light, Extremely Light Wheekchair

Seat Width: 33 - 36 - 39 - 42 - 45 cm
Total Width: 54 - 57 - 60 - 63 - 66 cm
Total Length: 82.5 cm
Total Height: 64 - 84 cm
Seat Angle Degrees:
Rear Seat Height: 43 cm
Front Seat Height: 47 cm
Seat Depth: 35 - 46 cm
Backrest Angle Back - Forward: 11.5° - (4.5°)
Back Height: 25 - 30 - 35 cm
Footrest Angle Degrees: 100°
Footrest Distance From Seat: 36, 38, 40, 42, 44, 46 cm
Transport Width: 40 - 43 - 46 - 49 - 51 cm
Transport Length: 74 cm
Transport Height: 38.5 cm
Transport Weight: 3700 - 3750 - 3800 - 3850 - 3900 g
Total Weight: 6000 – 6050 – 6100 – 6150 – 6200 g
Maximum User Weight: 100 Kg
Chassis: Chrome Molybdenum Tubing
Standard color: "Pearl White" or "Anodic Black"
