Metallrahmen
Stabiler Metallrohr-Rahmen mit 30 x 110 mm Rechteckrohr
Abmessung ohne Antrieb/Antriebsräder 1.330 mm x 840 mm
Abmessung inkl. Antrieb/Antriebsräder 1.330 mm x 912 mm
Lenk-Brems-Rollen
Vier blockierbare Doppellenkrollen mit Durchmesser 100 mm
Pulverbeschichtung
Umweltfreundliche Pulverbeschichtung in taubenblau

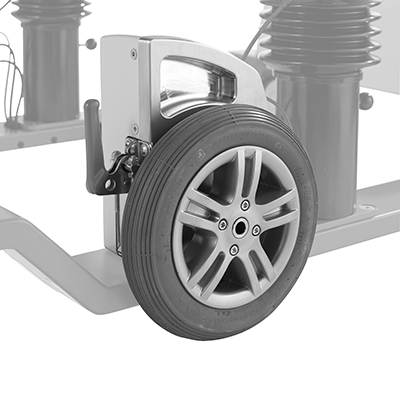

two drive units with one 100 Watt electric motor each
extremely powerful, durable, robust and very quiet
drive units are secured against dirt with plastic covers. Plastic covers are easy to clean and sanitizable
electric motors and wheels are connected with a stable drive block made of aluminium to one drive unit
the drive unit can be folded up or taken off during transport

two drive wheels with approx. 255 mm diameter
drive wheels with low-wear solid rubber wheels

fittet with two 12 Volt batteries
loading capacity lasts for up to 8 training hours
loading time ca. 8 hours
incl. battery charger with 230 V power connection
6 months guarantee

electronic control is secured against dirt and being hit under a plastic cover
in case of service the electronic control can be exchanged completely (secured in a metal box)

for users with 150 - 200 cm height and max.140 kg body weight
spring resistance can be adjusted in steps without help of tools
releasing/blocking the balance function with help of a release lever

stable pelvic belt available in different sizes
two cushioned leg straps for additionally securing against falling
two belt buckles for fastening to the frame
two "belt harnesses" for easy attachment of the pelvic safety belt

stomach cushion is fast adjustable in distance without tools
easily washable and sanitizable

flexible cushion with ball charge for soft support of the paretic arm
can be fixed individually on the table respecitively on the upper pipe frame
easily washable and sanitizable

handrails as a support during transfer into the exerciser and for additional safety of the user
two stay tubes that are variably adjustable in distance to the pelvis width of the user
incl. three belt buckles for attachment of the pelvic safety belts
height adjustment supported by gas spring
right and left side can individually be adjusted in height
pipes made of stainless steel with laser marking for height adjustment

remote control incl. helix cable connection (max. 145 cm long)
colour screen with a screen size of 51 x 40 mm
screen diagonal: 6,8 cm
easiest handling and setting of the most important training parameters e. g. speed, control of direction,...

flexible adjustable holder

ON-OFF-button: activaton of the control and display unit after stand-by
Speed: stepless adjustment of speed from 0 - 3,5 km/h max
Control of direction: adjustment of gait-direction with help of the right-left-buttons
Blocking function: the THERA-Trainer e-go can be blocked while attaching the pelvic safety belt
Change of direction: the THERA-Trainer e-go can be moved in the opposite direction (reverse). The user can walk in a 180° position (the THERA-Trainer e-go is located in the back of the user).
Sub menu: sub menu for the trained user. Presetting of important training parameters (e. g. turn dynamics, speed step, ...) to the individual needs of the user .
Training evaluation: automatical display of training time, average speed, distance, etc. after finishing the training session

CE-Declaration of Conformity according to guideline 93/42/EEC
certified quality management system according to DIN EN 13485
electromagnetic compatibility according to DIN EN 60601-1-2
intensive in-process inspections and final examinations incl. electrical safety tests
