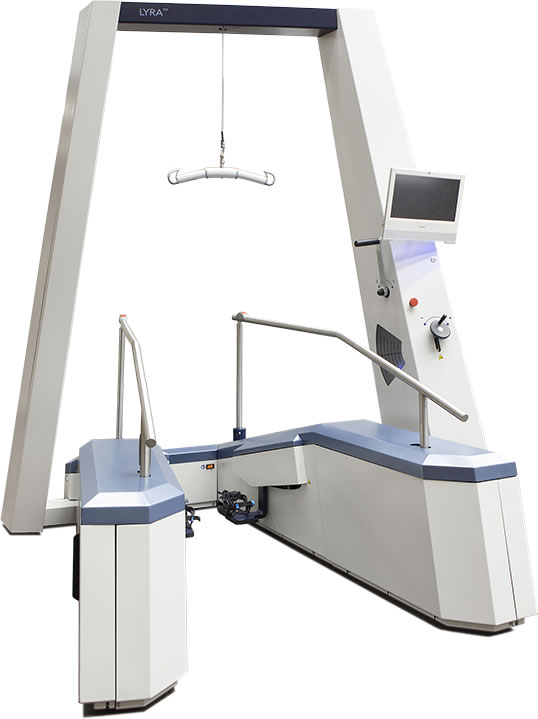

THERA-Trainer lyra
A006-206

Contact Us

Description

Crucial factors for successful rehabilitation of walking ability are – according to numerous findings of research in the field of motoric learning – therapy intensity and high repetition.

THE MOST EFFECTIVE THERAPY

The end effector gait trainer offers intensive gait training at the performance limit in each phase of rehabilitation. That’s how THERA-Trainer lyra created best requirements to help users find their way back into a self-determined daily life and offer them best chances to regain their walking ability.

Effective - Easy - Affordable

The absolute easy handling and the fast transfer make the use economically interesting also in daily use. Without the complication of having to put on an exoskeleton, minimal preparation times and an intense therapy schedule can be achieved with comparatively low procurement and operating costs.

THERA-Trainer lyra is also the world’s only gait trainer with connectivity functions which allow all training data and logs to be sent directly to the therapist’s smartphone or tablet. The therapist can access these easily and start to analyze the training session there and then or transmit them electronically to the treating physician.

Important therapy goals

  • Regaining walking ability
  • Increasing gait speed
  • Improving persistence
  • Improving the gait pattern

Basic Equipment

Base unit (Gait)
Base unit THERA-Trainer lyra
adjustment of step length 39 -67 cm
dynamic body weight support 0-60 kg
static body weight support up to 150 kg
power consumption 230 V
dimensions: 250 x 190 x 260 cm
Patient weight: max. 150 kg
Patient height: 100 - 195 cm
Control and display unit/ software (Gait)
Control- and display unit THERA-Trainer lyra
Tablet-PC with 15,6''-colour screen incl. touch-function
Screen size 34,5 x 19,5 mm
Software package THERA-Trainer lyra
Foot securing (Gait)
Plate Binding Size S/M (Pair)
unique and easy adaptation to all shoe sizes
taking the individual step width into account
adaptation to the unique physiological gait pattern to patients of any size in seconds

Possible Additional Equipment

Pelvic security (Gait)
Dynamic Pelvic Stabilisation
facilitates with its six different fixation points versatile, flexible pelvic control
helps target and improve the centre of gravity
Pelvic Support (Gait)
provides individually adjustable posterior pelvic stabilisation
maintains an upright posture
helps to influence the centre of gravity of patients who are unsteady on their feet
Harness Sizes XXS/XS/S/M/L/XL
Upper body securing system (Gait)
Paediatric Handrails
can simply be mounted to the existing handrails
offer safe and comfortable hold for children and teenagers who are at least 100 cm tall
Carabiner (2 pieces)
Extends the mounting.
Control and display unit/ software (Gait)
Interactive Biofeedback THERA-Trainer lyra
Activation of Connectivity THERA-Trainer lyra
Foot securing (Gait)
Plate Binding Size L
unique and easy adaptation to all shoe sizes
taking the individual step width into account
adaptation to the unique physiological gait pattern to patients of any size in seconds
Plate Binding for Pediatrics
unique and easy adaptation to all shoe sizes
taking the individual step width into account
adaptation to the unique physiological gait pattern to patients of any size in seconds
Additional bundles (Gait)
Support Bundle THERA-Trainer lyra
Including:
pelvic support (A006-212)
dynamic pelvic stabilisation (A006-211)
Flex Bundle THERA-Trainer lyra
Including:
removable plate binding L (A006-214)
harness systems S (A006-219)
harness systems M (A006-220)
harness systems L (A006-221)
harness systems XL (A006-222)
Paediatrics Bundle
Including:
paediatric removable plate binding (A006-215)
harness systems XXS (A006-217)
harness systems XS (A006-218)
harness systems S (A006-219)
paediatric handrails (A006-216)

Technical Spec.

Dimensions;L x W x H – 250 cm x 190 cm x 260 cm (closed) | L x W x H – 250 cm x 240 cm x 260 cm (open wing) ;Minimum Ceiling Height;270 cm;Weight ;ca. 570 kg;Power Consumption;230 V, single phase;Drive Motor;Servo motors;Power Input;230 V, 50 - 60 Hz, 3.15 A;Noise emission;LpA > 59 dB (A) ;Permitted Body Height;100 – 195 cm;Permitted Body Weight ;max. 150 kg;Body Weight Support;0,10 – 60 kg (dynamic) | 0 – 150 kg (static);Handrail Height;82 - 106 cm;Steplength ;39 – 67 cm in 4 cm-steps;Speed;0 – 4 km (stepless)
